15Ah
50 miles (80 Kilometers) Max Range
7.5 Hours Charge Time
Pay in installments of $5.95 with
,
and
Shipping Estimate
USA
- USA
- CAN
- USA
- CAN
Ships within 48 hours · Estimated delivery Jun 29 - Jul 4
Promo Codes Available:
For Your Every Summer RSVP, with Code: SUMMER15
Description
pedelec e-bike Pilot MD EbikeThe Magnum Pilot MD With our new Ananda mid drive system, the Pilot feels natural and balanced while cruising the boardwalk or on evening neighborhood rides with the family. An integrated but removable battery hides in the frame, and the thumb throttle means you only have to pedal on your terms. Available in a variety of eye catching colors, the Pilot will get you there in comfort and look good doing it. Highlights CategoryTouring ClassCan be

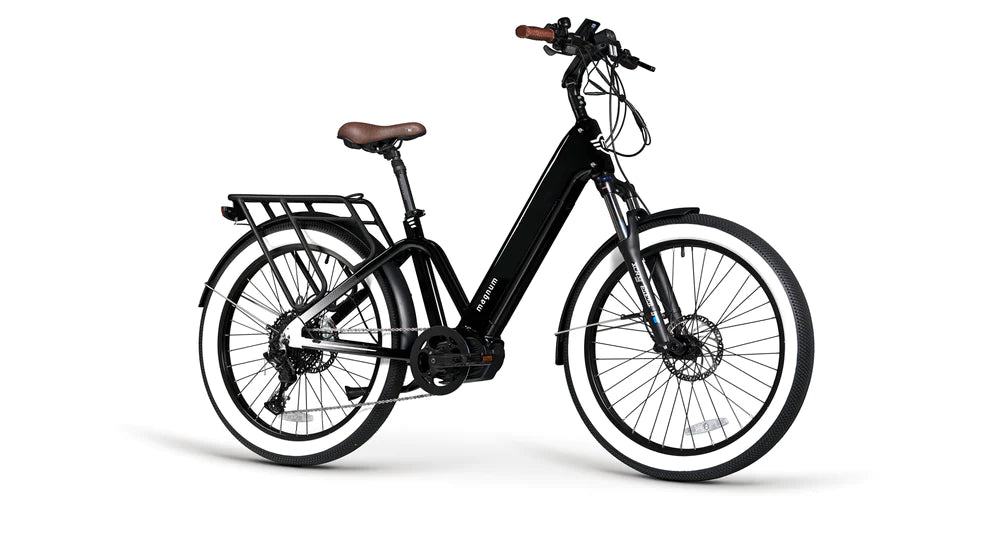

The Magnum Pilot MD
With our new Ananda mid-drive system, the Pilot feels natural and balanced while cruising the boardwalk or on evening neighborhood rides with the family. An integrated but removable battery hides in the frame, and the thumb throttle means you only have to pedal on your terms. Available in a variety of eye-catching colors, the Pilot will get you there in comfort and look good doing it.
Highlights
- CategoryTouring
- ClassCan be configured to a Class 1, 2, or 3 E-Bike.
- Frame TypeLow-step
- SeatingRelaxed
- Perfect ForPaved / Light Trails / Recreation
THE BATTERY.
The Pilot’s integrated and color-matched battery has a 15Ah capacity, and the ability to take a rider up to 50 miles on a single charge.
POWER MEETS BALANCE
Throttle-controlled mid-drive motor
Equipped with a powerful 500W mid-drive motor, this e-bike has natural power delivery, increased water resistance, and unique throttle control. It also features a derailleur clutch for rough terrain and a quick-detach rear wheel for easy maintenance.
Electronic Details
Motor Brand Ananda
Motor Type Mid-Drive Motor
Motor Nominal Output 500 Watts
Motor Peak Output 750 Watts
Battery Brand Samsung Cells
Battery Voltage 48 Volts
Battery Ah 15Ah
Battery Wh 720Wh
Battery Chemistry Li-NMC
Battery Charge Time (from empty) 7.5 Hours
Minimum Range 25 Miles (40 Kilometers)
Maximum Range 50 miles (80 Kilometers)
Display Type Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD
Display Readouts Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
Drive Mode Torque Sensor Pedal Assist, Thumb Throttle, Walk Mode
Top Speed Up to 28 mph with Pedal Assist, 20 mph with Throttle
Lights Integrated front and rear lights.
Frame material Aluminum Alloy
Fork Details Suntour XCM32 Boost
Gearing details Microshift Advent 10-Speed
Shifter Details Microshift Advent 10-Speed
Crank Aluminum Alloy 170mm
Pedals Wellgo
Stem Tool-free Adjustable
Brakes Tektro Hydraulic
Grips Brown Faux Leather
Saddle Selle Royal Freeway
Tire Brand 26 x 3.0
Wheel size 26”
Fenders Front and Rear Included
Chain KMC 10-Speed
Seat Tube 17.5" (44 cm)
Reach 16.75" (42.5 cm)
Stand Over Height 19.25" (49 cm)
Virtual Top Tube Length 23.25" (59 cm)
Min Saddle Height 23" (58 cm)
Max Saddle Height 29.25" (74 cm)
Width 27" (69 cm)
Wheelbase 48" (122 cm)
Length 76" (193 cm)
Total Weight 74.5 lbs (33.75 kg)
Battery Weight 8.5 lbs (3.9 kg)
Recommended Minimum Rider Height 5'0"
Kickstand Includes Center-Mounted Single Side Adjustable Length Kickstand
Bell Includes Bell
Charger Includes 54.6V 2A Charger
Front Rack Coming Soon
Rear Rack Includes Rear Rack
Fenders Includes Front and Rear Fenders
Accessory Mounts Includes Built-In Head Tube and Top Tube Accessory Mounts
